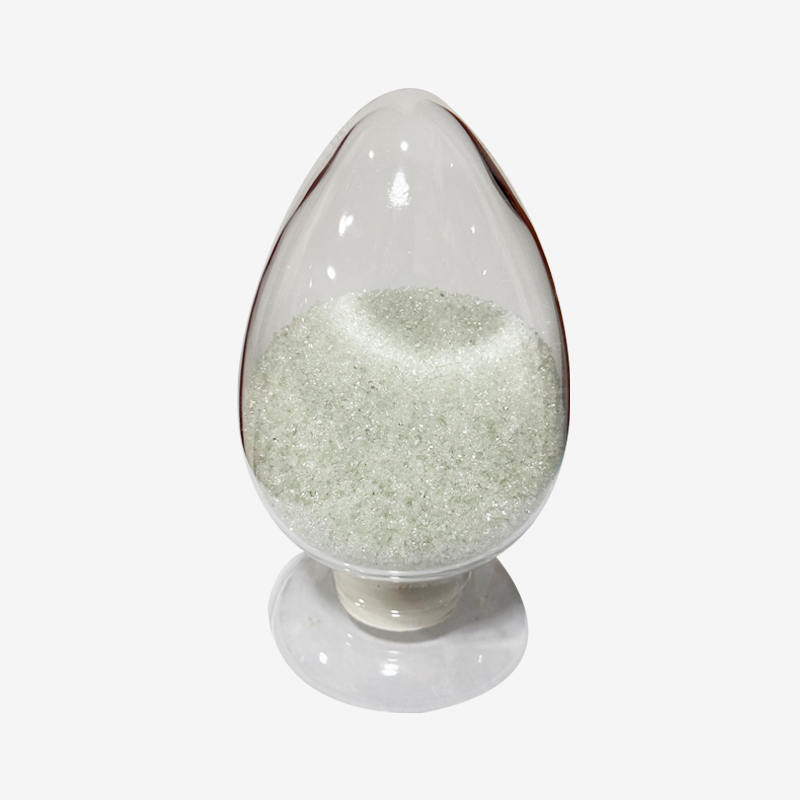

Floor Tile Polished Glaze Frit is a pre-melted glassy granule blend designed for high-traffic surfaces, composed of 60% silica (base framework), 20% borosilicate (lowers melting point), and 8% zirconia (enhances wear resistance). | |||||||||
| Serial Number | Ingredient Name | Content (%) | Serial Number | Ingredient Name | Content (%) |
| 1 | LOSS(700℃) | <0.05 | 15 | Li2O | <0.01 |
| 2 | Al2O3 | 20.13 | 16 | PbO | <0.01 |
| 3 | SiO2 | 51.13 | 17 | ZnO | 0.10 |
| 4 | Fe2O3 | 0.26 | 18 | SrO | 0.24 |
| 5 | CaO | 11.97 | 19 | MnO | 0.02 |
| 6 | MgO | 3.11 | 20 | Rb2O | 0.01 |
| 7 | K2O | 3.64 | 21 | Cs2O | <0.01 |
| 8 | Na2O | 4.23 | 22 | CdO | <0.01 |
| 9 | TiO2 | 0.07 | 23 | P2O5 | 0.05 |
| 10 | Zr(Hf)O2 | 0.22 | 24 | F | <0.05 |
| 11 | B2O3 | 0.12 | 25 | SO3 | 0.07 |
| 12 | BaO | 4.46 | 26 | NiO | <0.01 |
| 13 | CuO | <0.01 | 27 | Cr2O3 | <0.01 |
| 14 | CoO | <0.01 | - | - | - |
When fired at 1250°C for 12 minutes, it forms a glossy, scratch-resistant layer with a Mohs hardness rating of 6-7. The frit’s spherical granule shape (100-200μm diameter) reduces settling by 40% compared to traditional powder glazes, ensuring consistent coverage in automated production lines (e.g., 10,000+ tiles per day).
Superior Wear Resistance: Withstands 5,000+ revolutions in the Taber Abrasion Test (CS-10 wheel, 1kg load), making it suitable for high-traffic commercial spaces (shopping malls, airports)
High Gloss Finish: Reflectivity exceeding 85% (measured at 60° angle) enhances tile color vibrancy—deepens dark tones (e.g., charcoal) and brightens light tones (e.g., ivory) without color distortion
Slip Safety: Optional 15-20μm aluminum oxide texture additives achieve R10 anti-slip rating (per EN 14411 standard), reducing slip-and-fall risks in wet areas (bathrooms, entryways)
Cost Efficiency: Low water absorption (<0.5%) minimizes staining and mold growth, reducing maintenance costs by 30% annually compared to unglazed floor tiles; no need for waxing or sealants
Ideal for shopping malls, hotel lobbies, residential hallways, and office reception areas. Apply via automated spraying (nozzle diameter: 1.2mm, spray speed: 2-3m/min) for uniform coverage (dry film thickness: 0.5-0.6mm). Pair with porcelain floor tiles (water absorption <0.5%) for optimal durability in high-moisture areas (e.g., bathroom floors)—the glaze’s dense structure prevents water penetration. For large-scale projects, mix frit with deionized water (1:0.8 frit-to-water ratio) to ensure pumpability in production equipment.
Q: How to prevent pinholes in the polished surface?
A: Ensure thorough bisque firing at 1060°C for 15 minutes to burn off organic impurities (e.g., cellulose binders) in the tile body. Avoid over-firing the frit (>1270°C), as it causes excessive gas release and pinhole formation. If pinholes appear, sand the surface lightly (400-grit sandpaper) and reapply a thin glaze layer.
Q: Can it be used on existing floor tiles?
A: Only on unglazed tiles (e.g., quarry tiles) or tiles with completely removed old glaze. Sand the existing surface with 240-grit sandpaper to achieve a roughness of Ra 3.2μm, then clean with a degreaser (e.g., isopropyl alcohol) to remove oil. Apply 2 coats of glaze and refire at 1250°C—note: existing tiles must withstand high firing temperatures (avoid ceramic tiles with plastic backings).
Q: What’s the heat resistance limit?
A: Withstands continuous temperatures up to 300°C (e.g., hot pans placed briefly) without cracking or discoloration. Short-term exposure to 400°C (e.g., accidental candle contact) is tolerable, but prolonged exposure (>10 minutes) may cause slight gloss loss—restore with a polishing compound (ceramic-specific) and a soft buffer.
